The NUX DUAL LOOP STEREO stands as an exceptional companion for guitarists, singer-songwriters, and all musicians eager to explore the art of looping in their performances or compositions. Equipped with dual loop tracks and two distinct drum patterns, it empowers you to seamlessly weave together two independent sections of a song with precision and creativity. Furthermore, its arsenal includes a suite of built-in effects—such as Octave, Booster, Cabinet Simulator, and Reverb. A high-definition color LCD display ensures intuitive control, while stereo Mic/Instrument inputs and outputs, along with MIDI in/out functionality, provide unparalleled versatility. Whether you’re honing your craft during practice sessions, crafting melodies in the studio, or captivating audiences on stage, this remarkable dual-track loop pedal will ignite your imagination and transform your musical journey.
Dual Loop & Dual Rhythm
The NUX Dual Loop Stereo features two independent tracks and a dual drum machine, making it perfect for a wide range of creative applications. Whether you’re layering sounds to build rich, complex compositions or switching seamlessly between A/B sections for dynamic arrangements, it keeps up with your creativity and helps you bring your musical ideas to life with ease.
Superior Quality, Massive Storage
Featuring best-in-class 32-bit AD/DA and 32-bit floating-point processing, the DUAL LOOP STEREO captures your sound with full fidelity and keeps loops crystal clear, even with multiple overdubs. And with 26 hours of stereo recording time, there’s plenty of space for extended creative journeys.
With the DUAL LOOP STEREO, you can have 90 minutes of stereo recording time on a single track and 26 hours of stereo recording time in total.
Built to Inspire
NUX Dual Loop Stereo is built with inspirations in mind. It’s easy to create loops and practice with the NUX Dual Loop Stereo.
Power on the Dual Loop Stereo pedal, rotate the VALUE knob to select an empty memory from 01 ~ 99, then you can press the foot switch to record/play/dub your loops. You can also hold the foot switch to UNDO/REDO/CLEAR.
Master Your Sound in Any Setting. The NUX Dual Loop Stereo features 3 distinct loop modes, giving you the flexibility to create, layer, and perform—whether you’re practicing at home or commanding the stage.
A/B SPLIT mode: A/B Split mode is ideal for playing or practicing a two-part song. You can have different chords and drums in loop A from loop B and separately play them one after another.
A+B SYNC mode: A+B Sync mode is ideal for playing or practicing a song with two instruments or voices, such as a guitar and a microphone or a guitar and bass. You can mix the volumes of loop A and loop B and the drum to create the best phrases.
GIG mode (No drum): GIG mode is perfect for a gig with two independent loops. You have no limits but two simple loops to help you sing or play.
*Note: When using A/B Split Mode or A+B Sync Mode, the recording must be synced to the drum machine’s beat.
DUAL LOOP STEREO has 4 built-in recording effects: Octave, Booster, Cabinet Simulator, and Reverb. You can control these effects via the CTRL footswitch or the EXP footswitch.
*Note: Reverb is for input 1 and drum
Features:
- Dual-Track looper & Dual drum kit
- 99 phrase memories
- 90 minutes of stereo recording time on a single track
- 26 hours of stereo recording time in total
- 42 rhythm presets with 672 rhythm variations
- 4 effects including Octave, Booster, Amp Simulation, Reverb (only for rhythm)
- Sampling Rate: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Customized GIF Boot-up display (960 x 376 pixels, Max size 2 M)
- 2.86” high-definition colored LCD display (960 x 376 pixels)
- INPUT: Mono/stereo 1/4 inch inputs including XLR mic input with phantom power
- OUTPUT: Mono/stereo 1/4 inch outputs, headphones
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with space-saving mini TRS jacks
- USB audio with Loop-back
Specifications
- Sampling Frequency: 44.1 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Recording/Playback:
- Number of Tracks: 2
- Data Format: WAV (44.1 kHz, 32-bit float, stereo)
- Approx. 1.5 hours (1 track), Approx. 26 hours (total of all memories)
- Rhythm Type: 42 groups, 672 patterns
- Effect: Octave, Booster, Amp Simulation, Reverb (for drum or mic/instrument of input 1)
- Memory: 99
- Maximum Input Level:
- MIC IN: +6 dBu (with minimum mic gain)
- INPUT 1/2: +8 dBu
- AUX IN L/R: +8 dBu
- Mic Input Gain Range: 5.4 dB 63 dB
- Input Impedance:
- MIC IN: 2.4 kΩ
- INPUT 1/2: 1 MΩ
- AUX IN L/R: 1 MΩ
- Output Impedance:
- OUTPUT L/R: 1 kΩ
- PHONES L/R: 3.3 Ω
- Bypass: Buffered bypass
- Display: 2.86″ Colored LCD display, 960 x 376 pixels

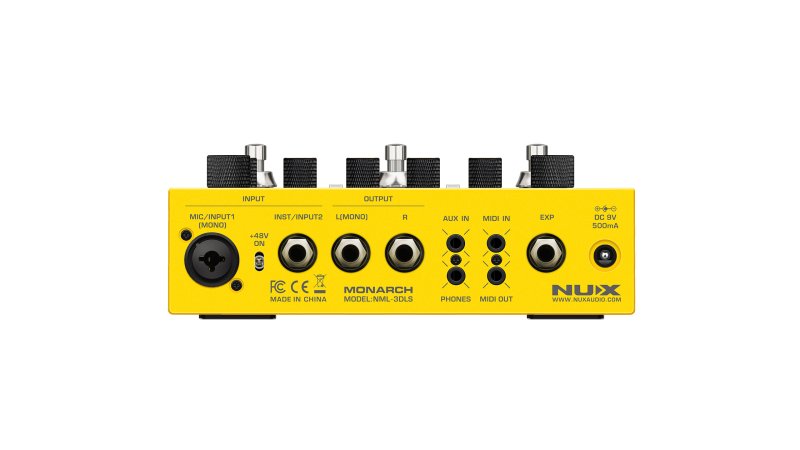

- Connectors:
- MIC/INPUT 1: Combined XLR & 1/4 inch type jack (balanced, phantom power: DC 48 V)
- INST/INPUT 2: 1/4 inch phone type jack
- OUTPUT L (MONO): 1/4 inch phone type jack
- OUTPUT R: 1/4-inch phone type jack
- AUX IN: 1/8-inch stereo miniature type jack
- PHONES: 1/8-inch stereo miniature type jack
- MIDl (IN, OUT) jacks: 1/8-inch stereo miniature type jacks
- EXP jack: 1/4-inch TRS phone type
- DC IN jack
- USB port: USB-C type
- Power Supply: ACD-006 (9 V 500 mA)
- Current Draw:
- Less than 170 mA (Phantom power off)
- Less than 270 mA (Phantom power on)
- Dimensions: 183 (L) x 130 (W) x 65.3 (H) mm
- Weight: 765 g
