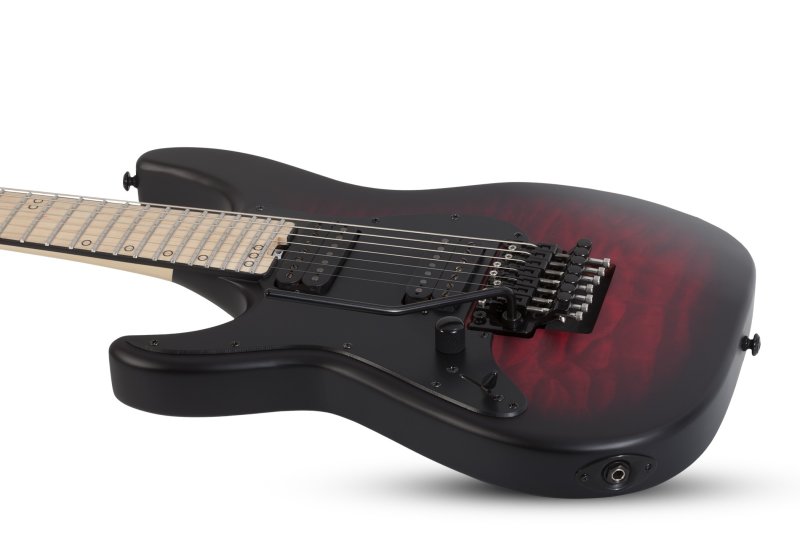

Model Name Miles Dimitri Baker-7 FR LH
Item Number 2138
Guitar Color Shown Crimson Red Burst Satin
NECK
Tuners Grover
Fretboard Material Maple
Neck Material Maple w/ Carbon Fiber Reinforcement Rods
Inlays Offset/Reverse Black Circles
Side Dot Markers Luminlay Glow in the Dark
Scale 25.5" (648 MM)
Neck Shape Ultra Thin "C"
Thickness 1st Fret- .748” (19mm)/ 12th Fret- .787” (20mm)
Frets 24 X-Jumbo Stainless Steel
Fretboard Radius 16" (406MM)
Nut Floyd Rose 1500 Series LH
Nut Width 1.874 (47.6MM)
Truss Rod 2-Way Adjustable Rod w/ Heel Access Spoke Wheel
BODY
Guitar Colors Crimson Red Burst Satin
Hardware Color Black
Top Contour Flat Top
Dexterity Left Handed
Construction Neck-Thru w/Ultra Access
Body Material Swamp Ash
Top Material Quilted Maple
Binding Black 1-ply
Bridge Floyd Rose 1500 Series 7-String Left Handed
ELECTRONICS
Controls Volume/5-Way Switch
Bridge Pickup Seymour Duncan Pegasus 7
Neck Pickup Seymour Duncan Sentient 7
ACCESSORIES
Knobs Metal Dome w/ Set Screw
Strings Ernie Ball 7-String (.009/.011/.016/.026/.036/.046/.062)
