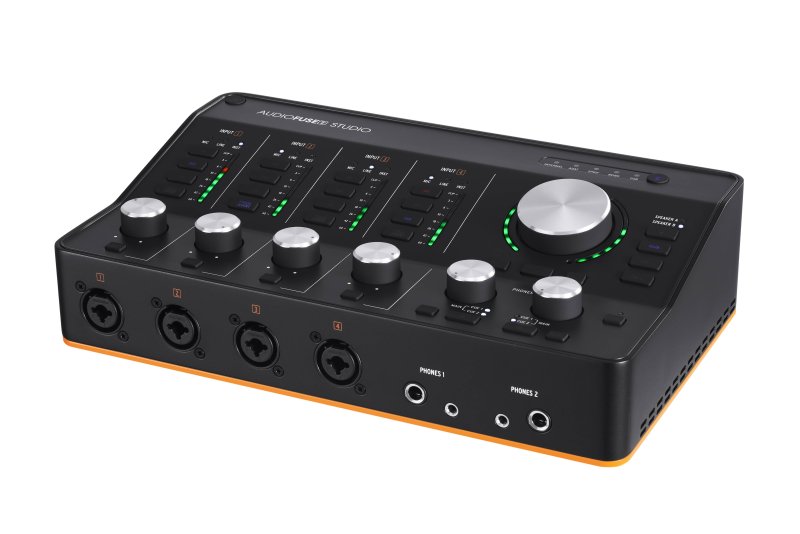

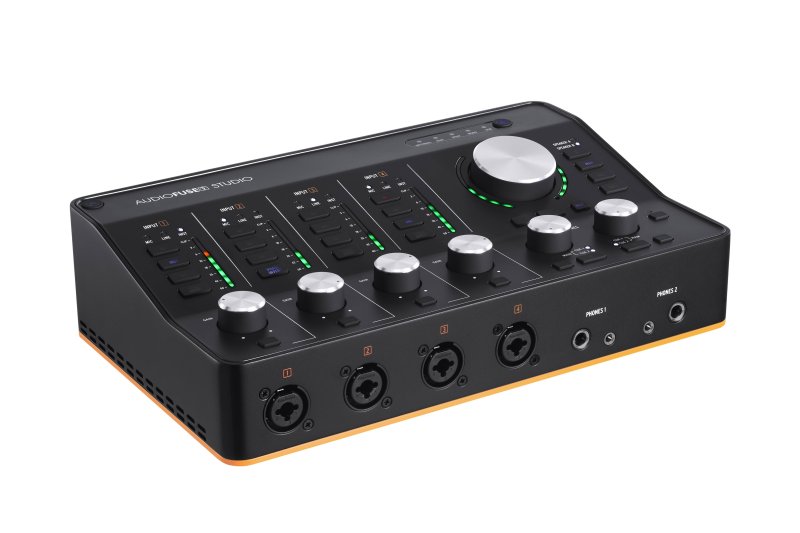

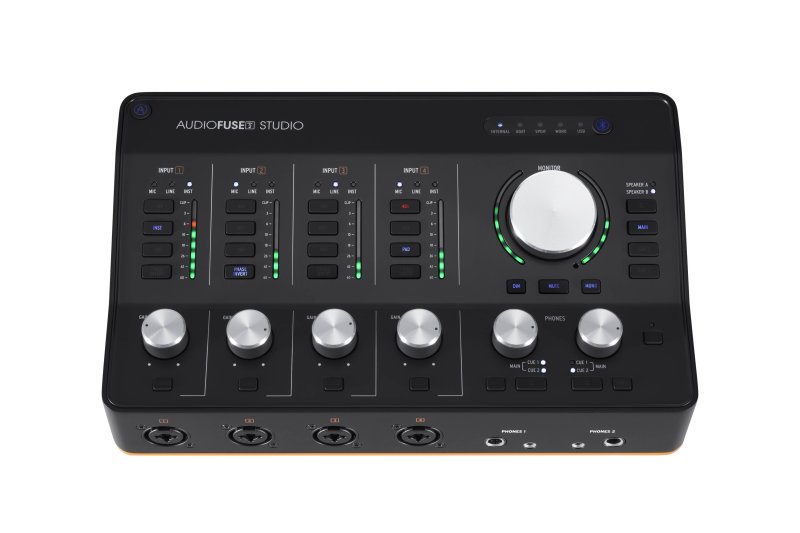

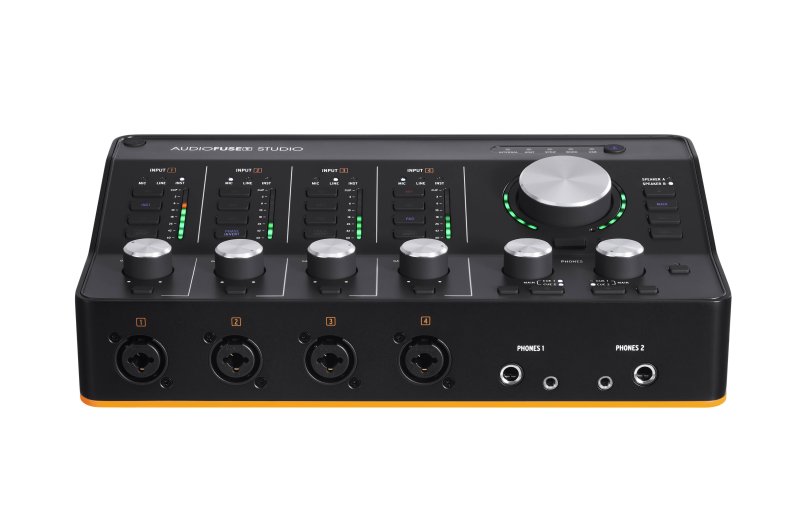

Premium desktop audio interface
AudioFuse Studio returns in an elevated Rev2 edition, featuring optimized preamps and an updated Bluetooth module. Combining pristine conversion with extensive connectivity, it’s the perfect all-in-one hub for any professional recording studio.
Pristine Quality
AudioFuse Studio Rev2 features 4 DiscretePRO® preamps to track your music, and a pristine analog signal path to reveal every nuance of your audio.
Each unit comes with its individual measurement certificate, providing a super-low Equivalent Input Noise (EIN) to capture every subtle detail, and a huge 72dB gain to drive even the quietest ribbon mics.
Every detail is captured with absolute transparency and faithful accuracy, preserving the true character of your source. Latest-generation 24-bit AD/DA converters running at up to 192kHz carry that signal into your DAW and back out again.
Ultimate Creative Hub

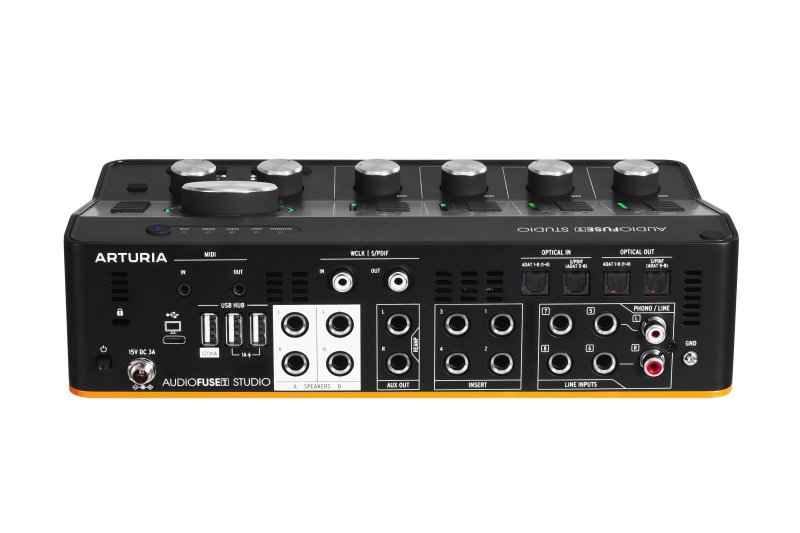

A u dioFuse Studio Rev2 features 8 analog inputs—comprising 4 mic/line/instrument inputs, 4 line inputs including a dedicated Phono input for vinyl—alongside 4 line outputs, 4 analog inserts, and 2 Aux/guitar reamping outputs.
Combined with robust digital connectivity (ADAT, SPDIF, Word Clock, MIDI, USB-C), an upgraded Bluetooth® receiver, and advanced monitoring capabilities—including the ability to drive 2 speaker sets and dual independent headphone outputs— it serves as the ultimate all-in-one hub for any studio configuration.
Complete Production Bundle
AudioFuse Studio Rev2 comes bundled with the AudioFuse Creative Suite, a premium, expanding collection of software effects and instruments featuring titles from the acclaimed FX Collection.
Preamps, compressors, reverbs, delays and modulation, plus virtual instruments: everything needed to mix, master and finish a record from the moment the box is opened.
Included Software
- Analog Lab Intro
- Pre 1973
- Pre V76
- Pre TridA
- Comp FET-76
- Comp DIODE-609
- Delay TAPE-201
- Filter MINI
- Rev PLATE-140 Chorus JUN-6 Phaser BI-TRON.
Features & Specifications
- 18 inputs, 20 outputs channels (8 total analog inputs)
- 24-bit latest generation AD/DA converters at up to 192kHz sampling rate.
- 4 mic/instrument/line preamps with DiscretePRO® technology (-129dBu EIN, 119dB dynamic range, dedicated hands-on controls)
- 4 additional line inputs, with inputs 5-6 commutable to phono RIAA preamp.
- 4 analog inserts on channel 1-4
- Bluetooth audio receiver supporting aptX©, aptX™ HD, aptX™ Low Latency, and AAC©
- 2 pairs of speaker analog outputs on balanced TRS Jack
- 2 independent stereo headphones outputs, both 6.35 and 3.5mm TRS, with independent sources, controls, and metering
- 2 independent analog line outputs with reamp capability (instrument level output)
- USB-C interface compatible with PC & Mac, fully USB 2.0 compatible, with multi-port USB hub
- MIDI and connectivity

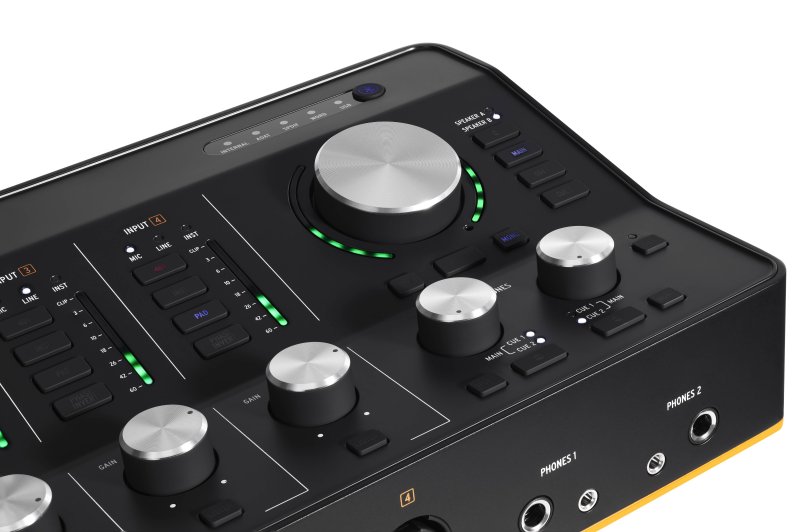

- Complete monitoring section with individual level control for speakers and phones
- Direct monitoring ultra-low latency internal mixers
- 8 digital ADAT inputs/outputs up to 96kHz
- S/PDIF i/o or Word clock input, output/thru on Cinch RCA
- DiscretePRO® Individual audio performance certificate delivered with each unit.
- Robust metal desktop chassis
Ecosystem Update
We support our products on the long run: the AudioFuse ecosystem keeps evolving with free updates. Your unit is cared for, years after purchase.
Audio Fuse Control Center 2.5.0 brings a new preset import/export feature to all existing AudioFuse devices, allowing users to save and recall custom presets from their computer.
Audio Fuse Control Center 2.5.0 brings a new preset import/export feature to all existing AudioFuse devices, allowing users to save and recall custom presets from their computer.
